To request skirting boards with worldwide shipping, please use our enquiry form. The shipping will be calculated according to the actual cost of the carrier.

FLUSH BASEBOARDS SYSTEM IN STOCK IN OUR E-SHOP

With transport in the Czech and Slovak Republics.

TECHNICAL DETAILS

More information can be found in our LINUS technical data sheet

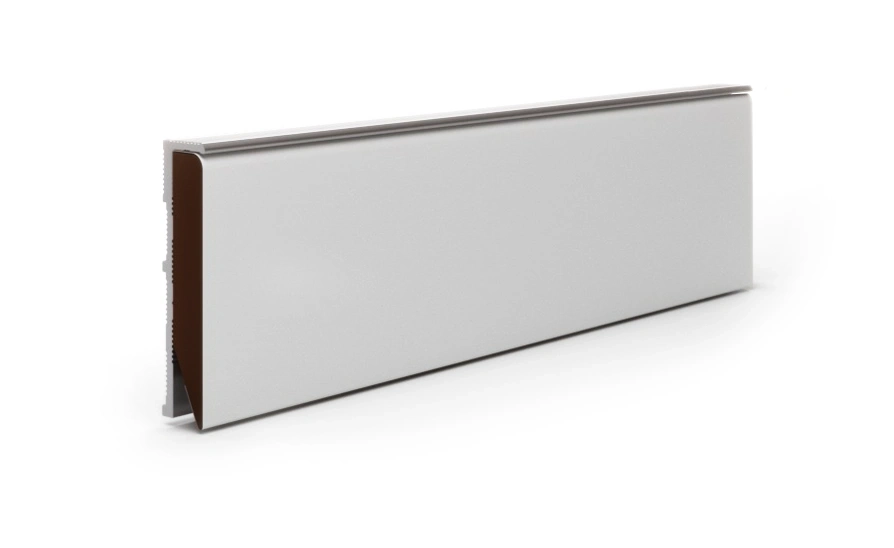

LINUS 13

LINUS 13
profile designed for plastering into masonry partitions as well as cladding of SDK boards with a thickness of 12,5 mm in dry construction, allows to insert an insert with a thickness of 9 mm, the length of the skirting board is 2400 mm.

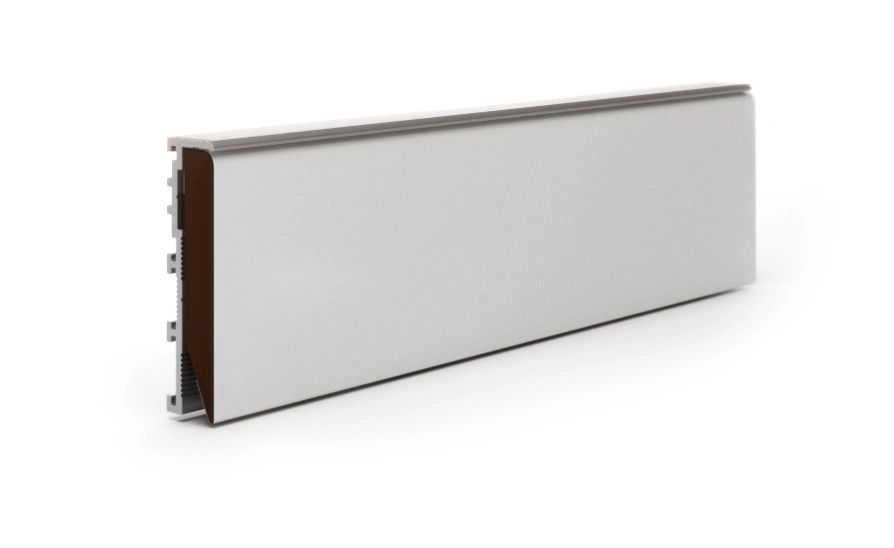

LINUS 15

LINUS 15
profile designed for plastering into masonry partitions as well as cladding of SDK boards with a thickness of 15 mm in dry construction, allows to insert an insert with a thickness of 9 mm, the length of the skirting board is 2400 mm.
Concealed skirting boards are made of aluminum alloys according to EN-AW 6060 and heat treated in the T6 state, guaranteeing good resistance to atmospheric and chemical influences.

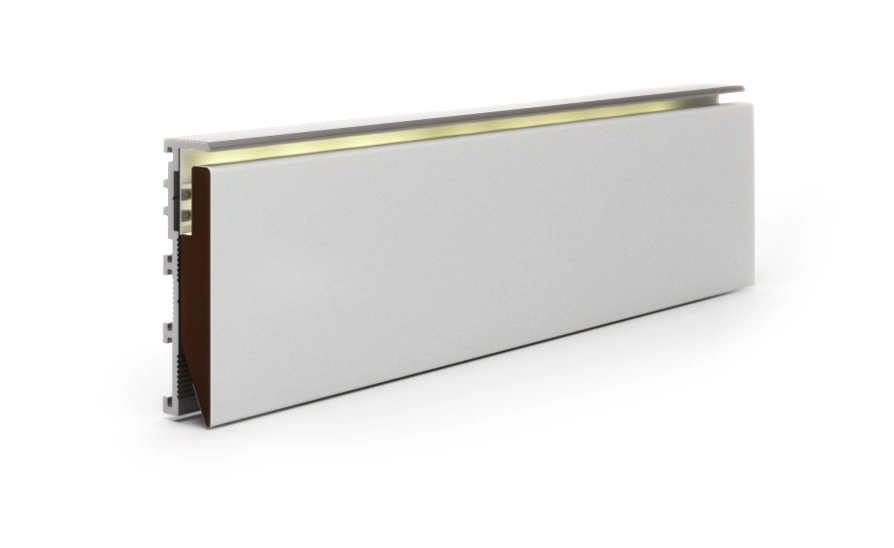

LINUS LED

LINUS 13 and LINUS 15 - VARIANT WITH LED LIGHTING

a half-groove measuring 5 × 20 mm is milled in the rear part of the insert
the height of the insert needs to be reduced by approx. 3 mm for the passage of light
The LED strip is glued to the skirting board, coordination with the electrical installation is necessary for connection

Clean design of the door leaf and wall

No dust and dirt on the skirting board

Universal for plasterboard and masonry

Allows mounting with LED strip

System solution with hidden DORSIS door frames

PROFILE DESIGNED FOR PLASTERING IN WALLED PARTITIONS, BUT FIRSTLY FOR SHEATING SDK WITH 12.5 MM THICKNESS IN DRY CONSTRUCTION. IT IS POSSIBLE TO INSERT AN 9 MM INSERT INTO THE PROFILE. LENGTH OF GLASS RAIL 2 MM

Due to its rigidity, the PROFILE IS INTENDED FIRSTLY INTENDED TO BE PLACED INTO MASONRY PARTITIONS, BUT ALSO SHEATHING WITH SDK BOARDS 15 MM THICK WITH DRY CONSTRUCTION. IT IS POSSIBLE TO INSERT AN 9 MM INSERT INTO THE PROFILE. LENGTH OF GLASS RAIL 2 MM

PROFILE DESIGNED FOR PLASTERING IN WALLED PARTITIONS AND SHEATHING OF SDK WITH 15 MM THICKNESS IN DRY CONSTRUCTION. A MODIFIED INSERT WITH LED TAPE CAN BE INSERTED INTO THE PROFILE. THROUGH BACKLIGHT WE ACHIEVE A UNIQUE EFFECT. LENGTH OF GLASS RAIL 2 MM

LINUS - FLUSH BASEBOARDS

Short delivery time throughout the EU.

LINUS- A UNIQUE SYSTEM
FLOOR MOLDINGS

The skirting board consists of a hidden aluminum profile combined with a design-variable insert, which in the end forms one plane with the wall - no protrusions, no disturbing elements. In addition, there is no need to solve any problems with peeling or falling strips in the corners or dust deposited on the strips themselves.

system solution of the hidden DORSIS skirting board

HIDDEN FLOOR
LINE BAR

Hidden floor - skirting boards LINUS 13 and LINUS 15 are a design element that completes the minimalist detail to perfection with the hidden DORSIS door frame.
The installed skirting board creates space for mounting inserts of various materials. It can be sweetened with the shade of the floor covering, door or wall. The insert is not part of the delivery of the skirting board, it is always solved individually.
An LED strip or bar can be inserted into the modified insert, which will create a unique effect with backlighting. To end floor moldings right - left milled ends with a length of 480 mm are intended for the hidden DORSIS door frame or BELPORT unlined housing. It is an aluminum profile designed to be anchored to the wall in the rough phase of construction, ie before plastering the masonry or cladding SDK for dry construction.

The rigid construction of the aluminum prol ensures high strength, the total length of the plinth is 2400 mm
The plinth is suitable for masonry, SDK partitions and other dry construction and allows the insertion of inserts of various materials
they are installed in masonry partitions using assembly glue, they are anchored in SDK partitions by means of a screw
for a different height of the visual insert, the plinth is installed above the level of a clean floor or is sunk into the floor for a lower height
milled ends (right - left) in a total length of 480 mm are intended for the end of the plinth to the hidden door frame and the unlined housing
The LED strip for lighting the plinth is calculated individually and coordination with the electrical installation is necessary

FLUSH BASEBOARDS FOR SDK AND MASONRY

This is an indisputable advantage of hidden skirting boards. For a perfect match with the interior, you can choose from 2 types of 9mm thick superfinish inserts. Do you already have yours? Need backlit using LED technology?

APPLICATION OF PLASTERS

When applying plaster by machine, the edge of the aluminium profile is used as a plasterer, defining the plane along which the plaster is applied.
The mouldings are fitted into the rough construction according to the specified height of the view insert and the floor composition.

Insert for concealed skirting board DORSIS Linus

WE PUT A GREAT FOCUS ON DETAIL AND FIRST CLASS PROCESSING

that's why we offer a system solution for precise connection to Dorsis hidden frames and casings

CORNER PROFILES LINUS 15

we now offer solutions for easy installation of external and internal corner profiles

Hidden plinth - floor rail LINUS use on stairs

LINUS 15 for stairs

LINUS 15 profiles can also be used as a hidden skirting board on the staircase with the help of a stair connector.

LINUS LED

An LED strip can be inserted into the bar to create a unique effect by backlighting.

System for connecting the floor skirting board to the hidden DORSIS door frame

Milled inserts
for connection to hidden door frames

The LINUS concealed floor rail system solution offers easy connection of the aluminum rail and the insert to the DORSIS concealed door frame.

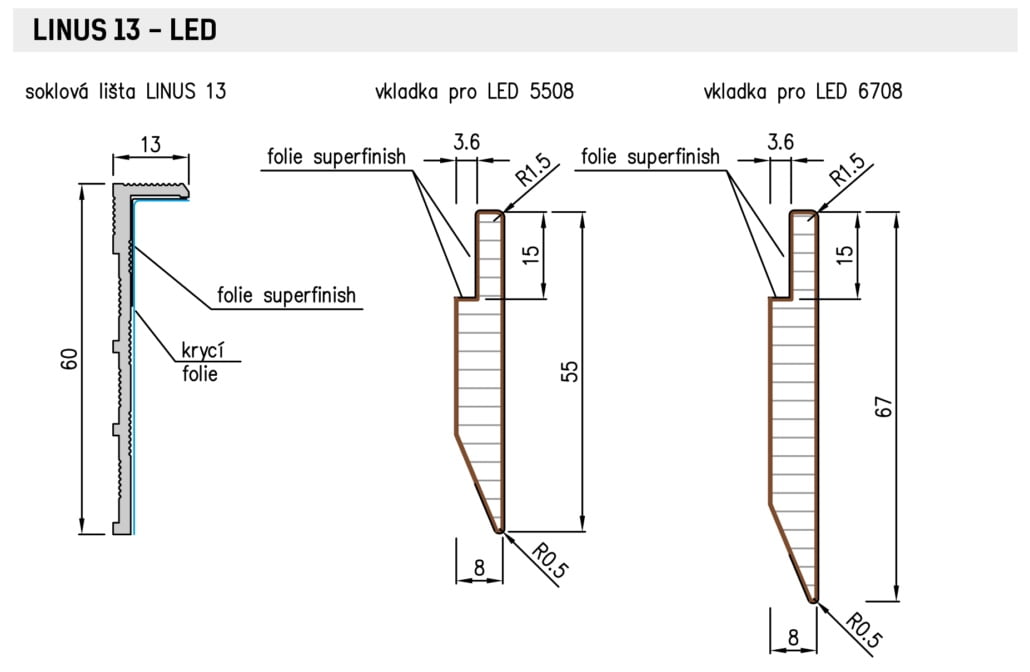

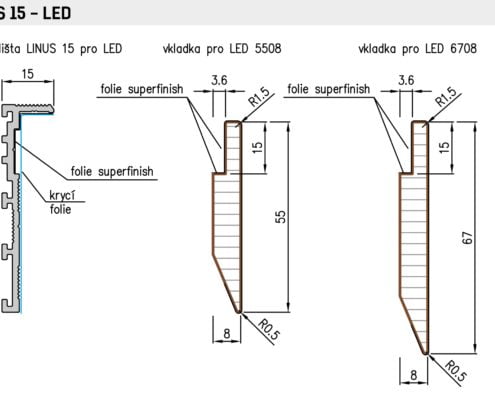

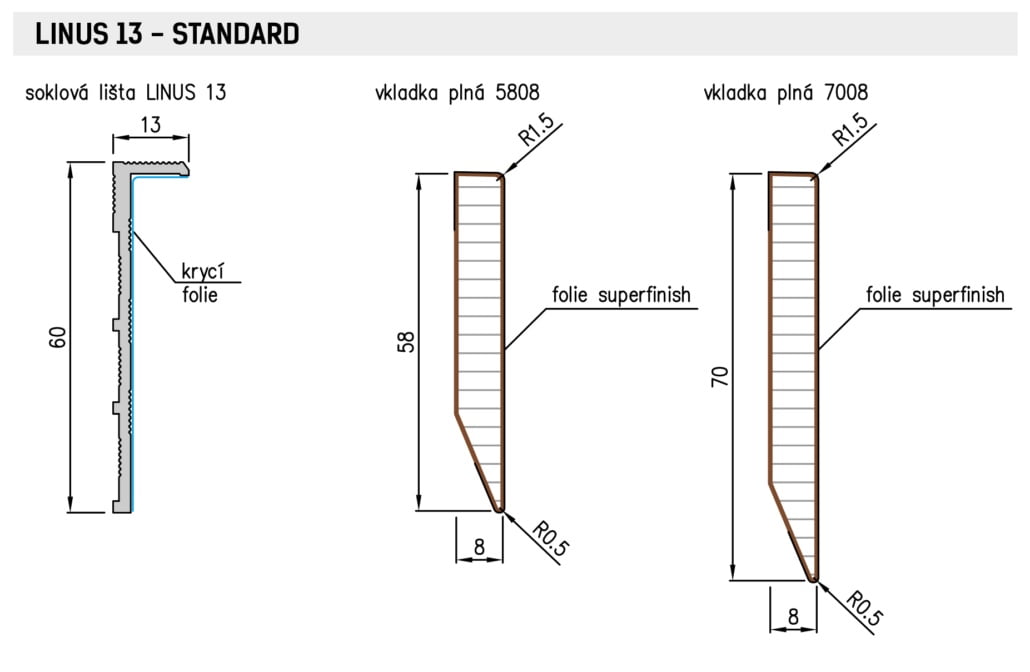

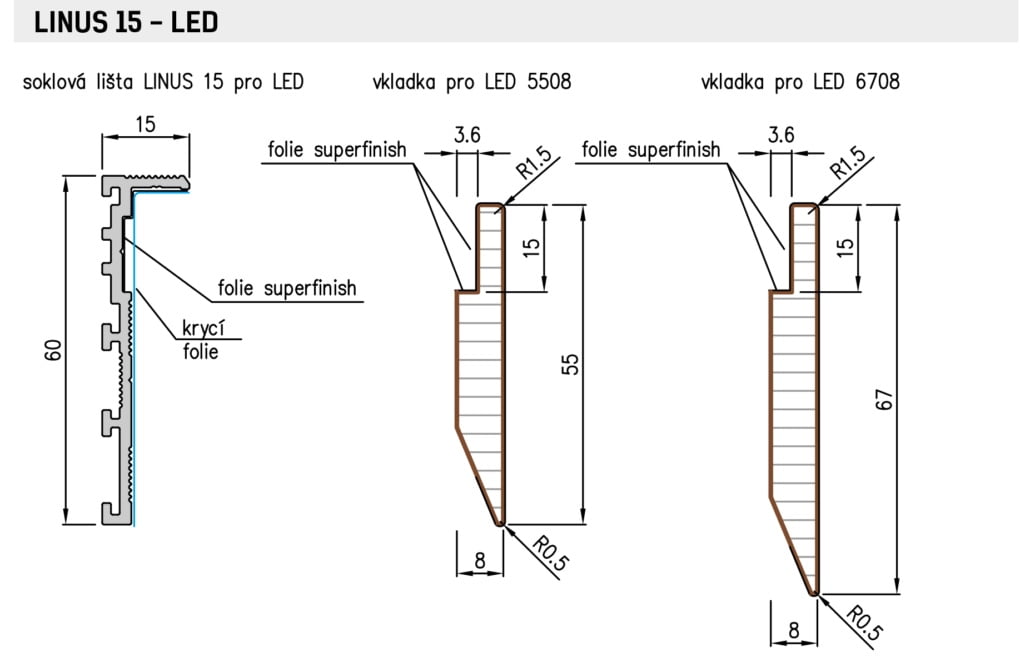

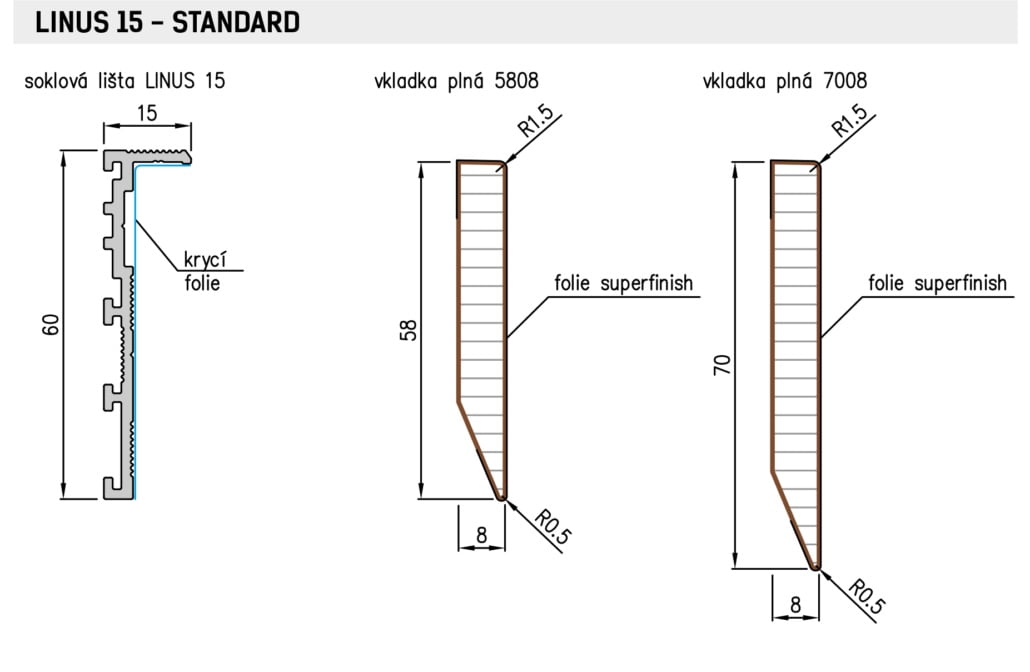

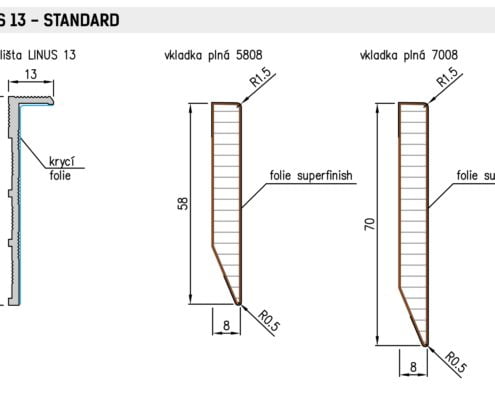

LINUS DIMENSIONS

Quoted deposit types for LINUS 13 and 15

MDF plinth inserts in SUPERFINISH foil design (white foil - the shade closest to RAL 9003)
Skirting board with MDF core. Possibility of height adjustment by grinding the beveled part up to 11 mm for the final insert height of 47-58 mm

Linus dimensions to download

SKIRTING BOARD INSTALLATION PROCEDURE

we generally recommend the installation of the skirting board only after pouring rough floors, anhydride and screeds; in this way it is possible to better achieve the required height of the plinth and design insert
the basis is the exact determination of the height of the final floor, the standard height of the bar is 60 mm, for larger plinth heights it is enough to anchor the profile above the zero floor, for lower heights the profile is sunk below the zero floor
the upper edges of the skirting board profiles must be in a horizontal line, we recommend using a cross laser during installation
before installation, it is necessary to determine the flatness of the wall with a spirit level and determine the depth of the plinth settlement accordingly; in case of unevenness of the wall, it is necessary to line the skirting board from the wall so that the plaster has min. 10 mm
after measuring the required length, the skirting board is cut off using a suitable tool, we recommend a circular miter saw with a blade for cutting aluminum, the cutting speed will affect the quality of the cut; for the outer corner we cut at an angle of 45 °, for the inner corner we make a perpendicular cut
the cut bar is placed in the required position and fastened to the wall with a suitable glue, for SDK partitions it is anchored to the SDK construction by means of self-tapping screws
in the place of unevenness of the masonry walls and in the corners of the room, we recommend anchoring the skirting board mechanically using hammer-in dowels
universal right-left milled terminals are designed for connecting the plinth to concealed DORSIS door frames and liners; the end piece is cut and placed in the wall next to the door frame and mechanically anchored to the profile of the door frame or case by means of self-tapping screws
after plastering the wall or applying SDK boards, painting and laying the final floor, the prepared design inserts are inserted and glued into the skirting board

Assembly instructions for download

WE KNOW WHAT WE DO - WE ARE DORSIS

We are engaged in the development, custom production and implementation of hidden door frames, including above-standard high invisible doors to the ceiling and glazed variants, unlined building cases, all-glass sliding partitions, pivot doors and hidden LINUS skirting boards. Our products are a functional and design addition to commercial and residential interiors.
