BEER ROTARY DOOR
Follow the manual added link

BUY PIVOT HINGES IN ESHOP

Follow the manual added link

INQUIRE PIVOT DOOR

We will create a free price offer for you, including an expert consultation on the technical solution of the project

Follow the manual added link

TECHNICAL DETAILS

INVISIBLE PIVOT HINGES

Available for wooden and glass sash with frame

DOOR ROTATE 360 °

DESIGN AND INNOVATIVE SOLUTIONS

CAPACITY OF PIVOT HINGES UP TO 150 KG

WING HEIGHT UP TO 3 MM, WING WIDTH UP TO 000 MM

Development, production and implementation of Axon pivot doors

The aim of the pivot door is to make the most of the full width of the door opening, to illuminate the interior and bring a truly elegant luxury element into the apartment!

Solid, frame and all-glass

Choose stylish pivot doors for your interior.

Frame pivot door

Elegant pivot door solution in aluminum frame. The frame variant allows you to hide the pivot hinges.
Imagine a door that doesn't need frames at all. Not only will they keep the line of the entire wall undisturbed, but they will bring a completely new aesthetic to your interior. All this within the maximum height (up to 3 mm) and width of the door leaf (up to 000 mm).

PreviousNEXT
12345

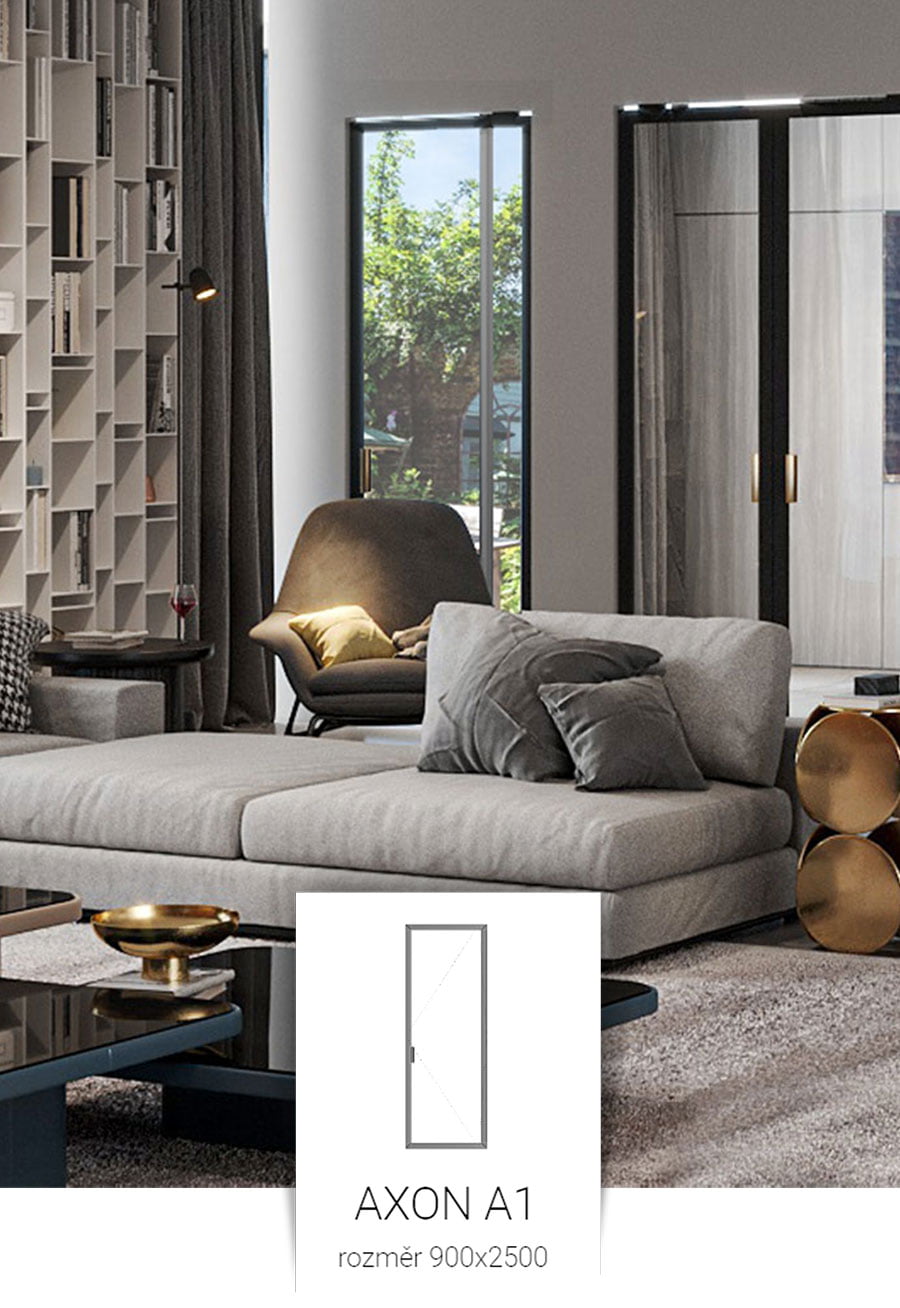

slide size 900x2500

42 200 CZK
1 758 EUR
size 1400x2500

78 800 CZK
3 283 EUR

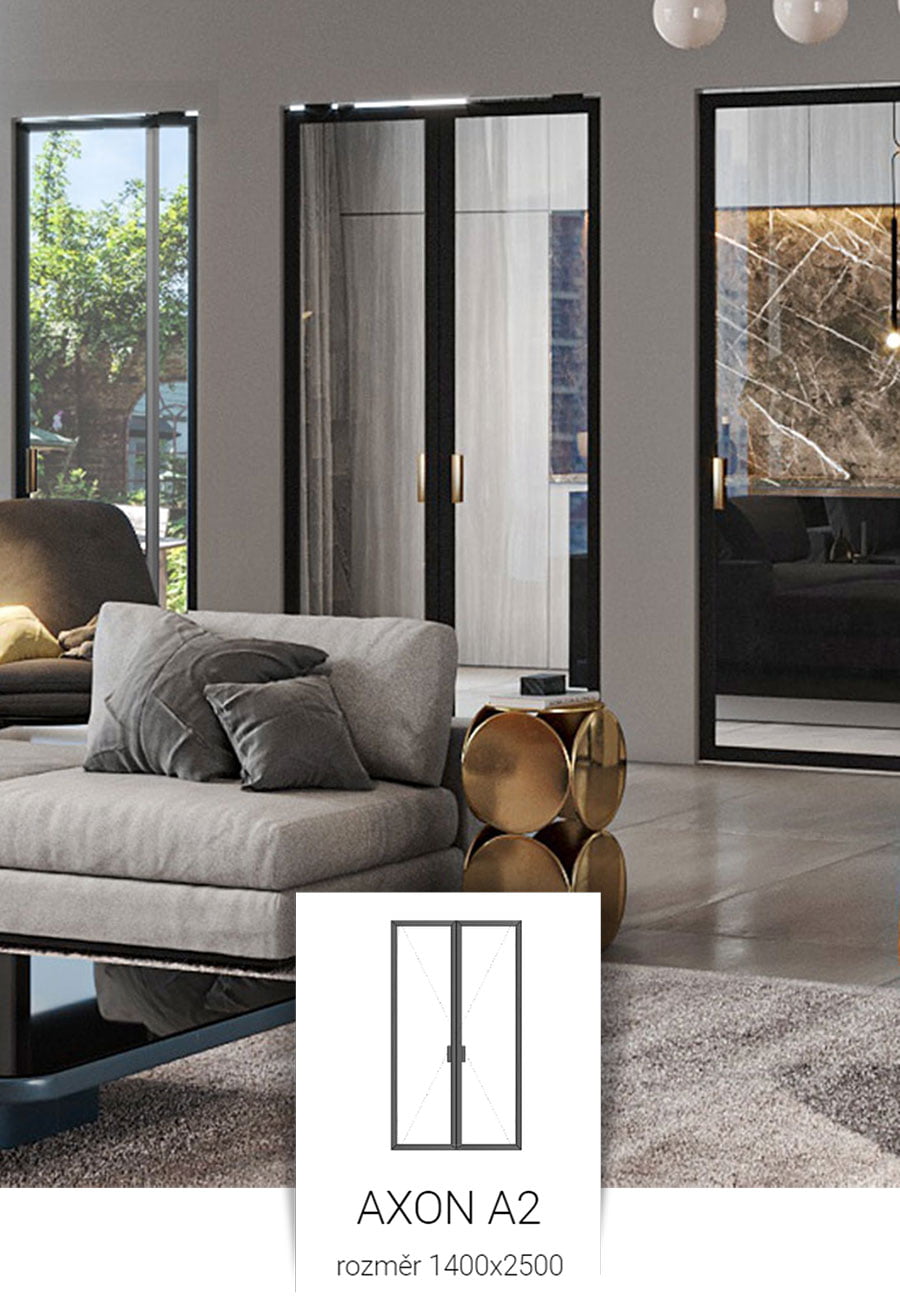

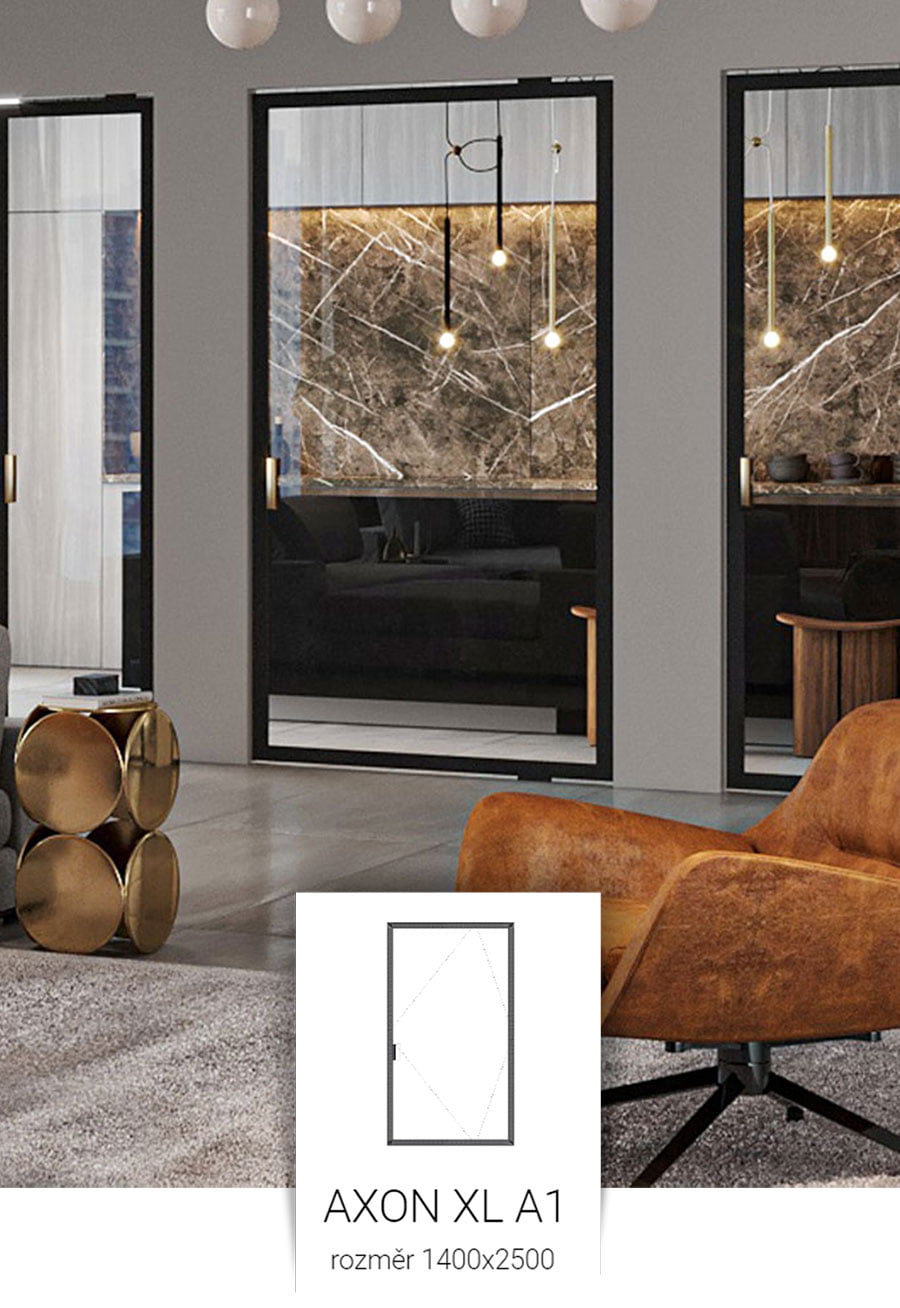

AXON A2 AXON A1 AXON XL A1 size 1400x2500

53 100 CZK
2 213 EUR

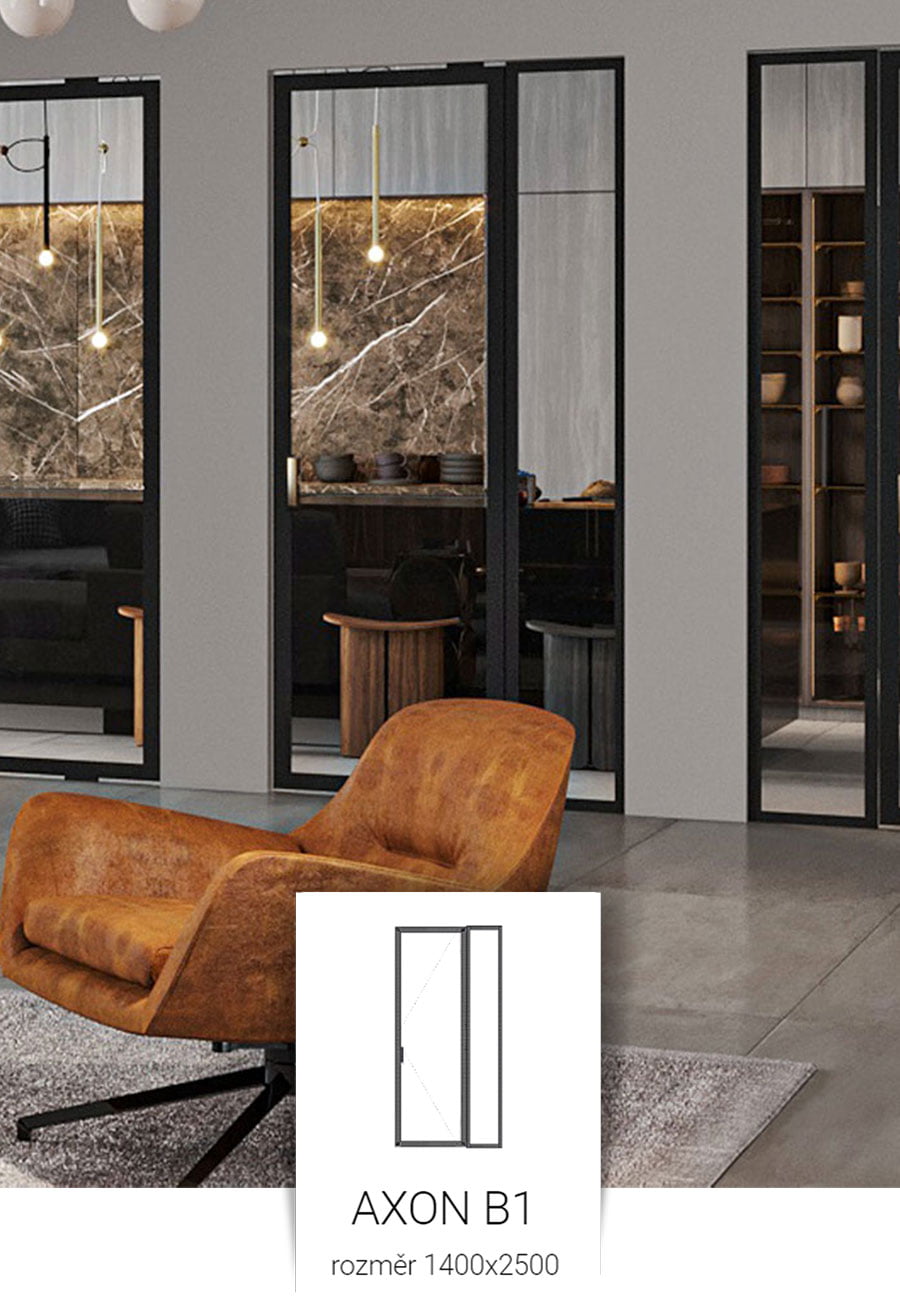

AXON B1 size 1400x2500

59 700 CZK
2 488 EUR

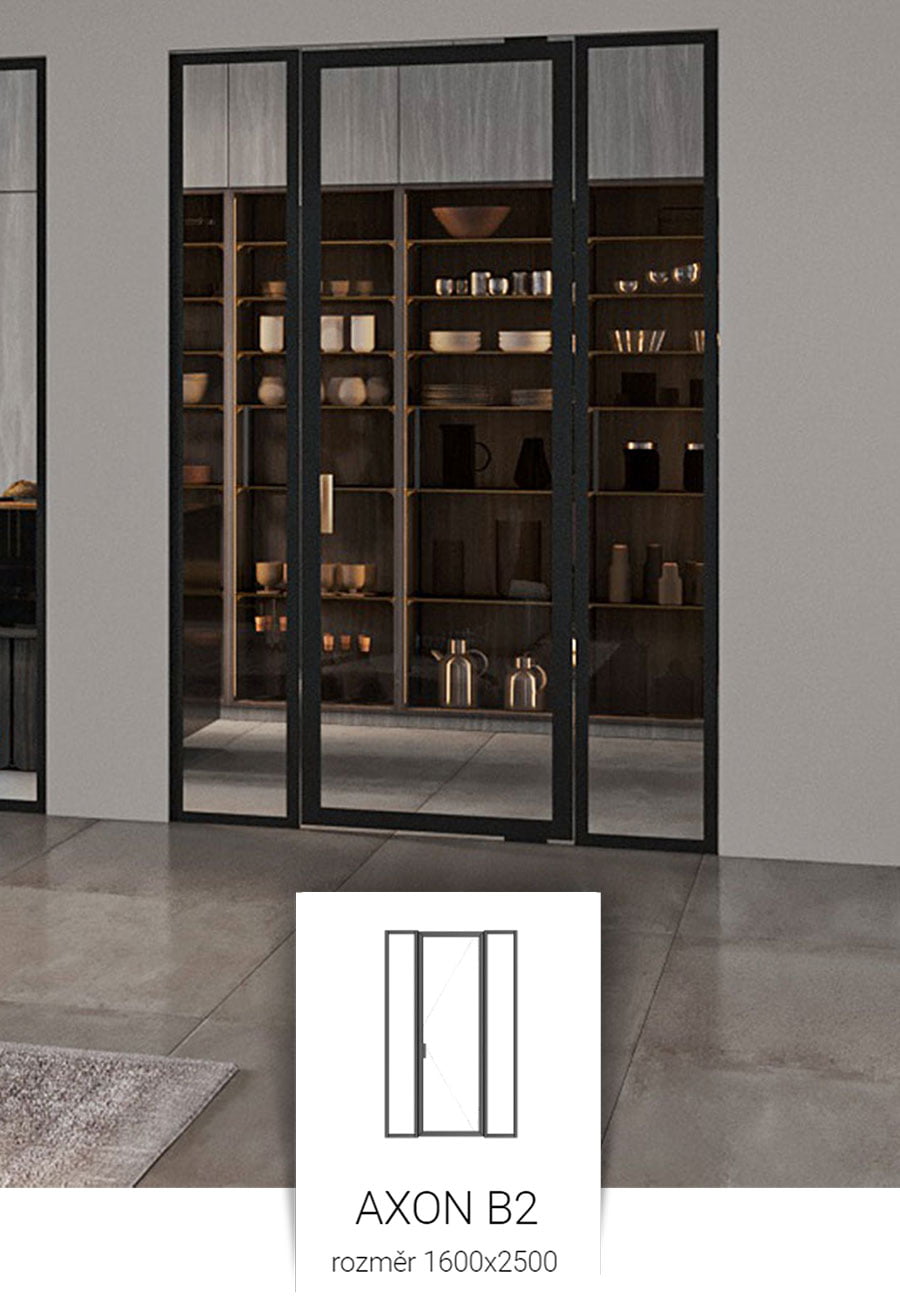

AXON B2 size 1600x2500

The price is given for a dimensional example of an individual partition in the black color of CARBON structures and with clear glass. Calculated without assembly, transport and VAT.

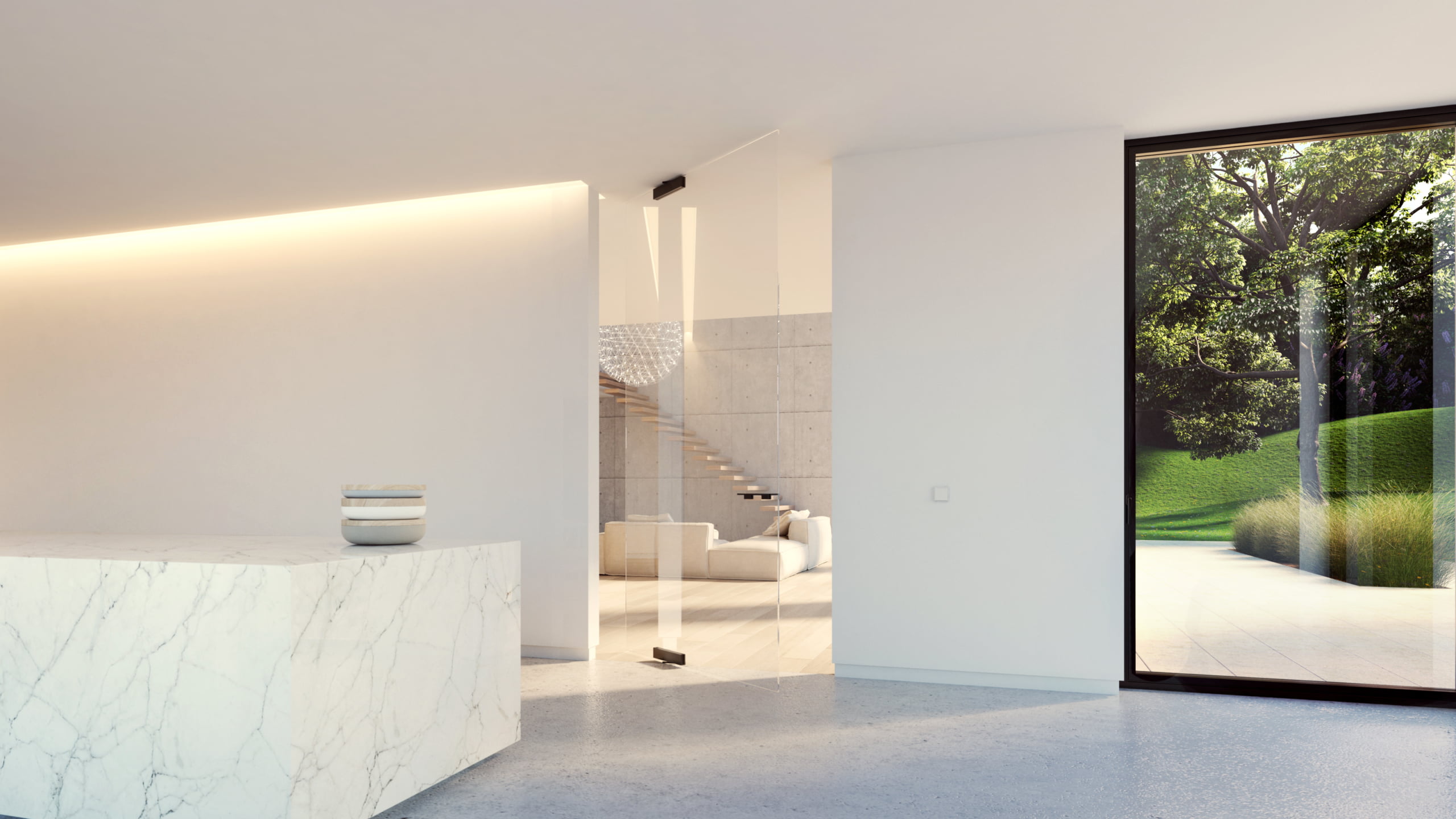

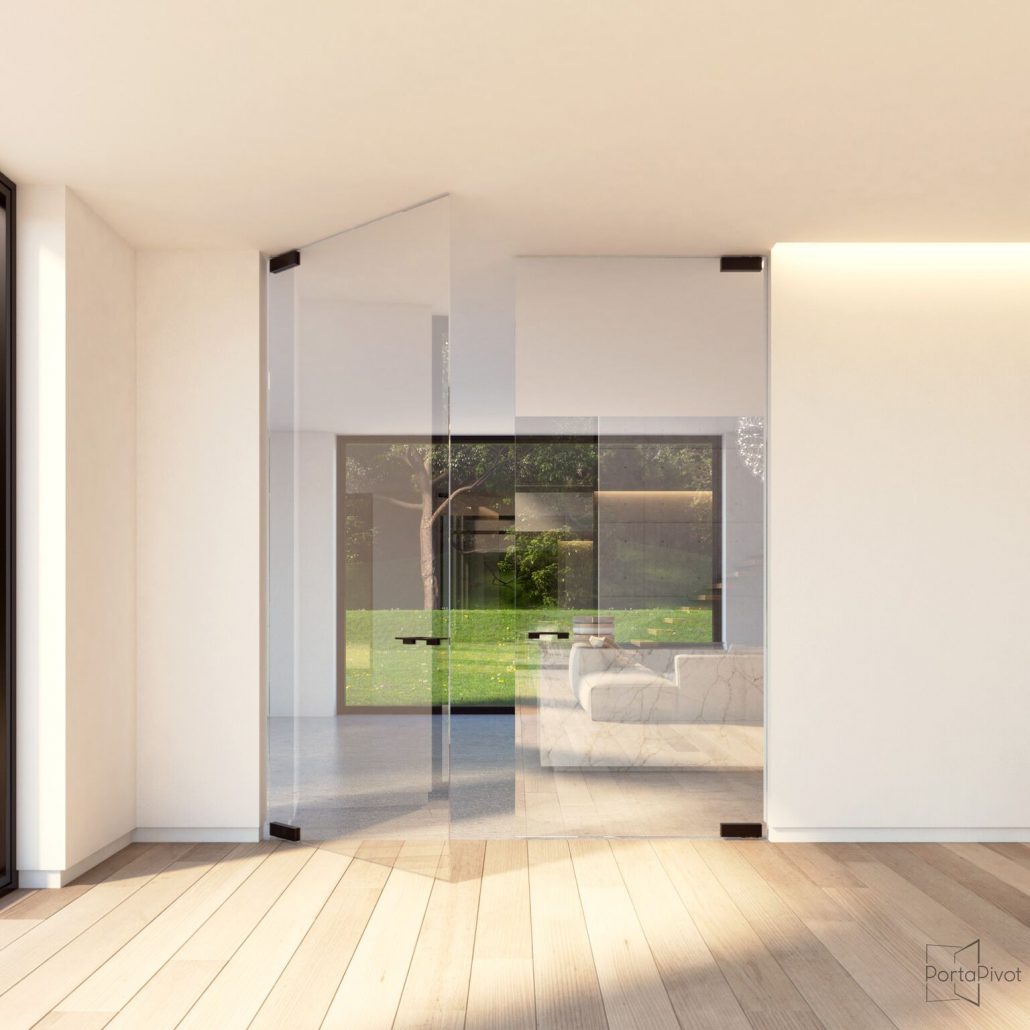

All-glass pivot door

Axon glazed pivot door on eccentric hinges.
Without door frames and transition edges or thresholds, you have the feeling that the door space is much larger, the entire interior will be "enlarged" and brightened.

glass pivot door
wooden pivot door

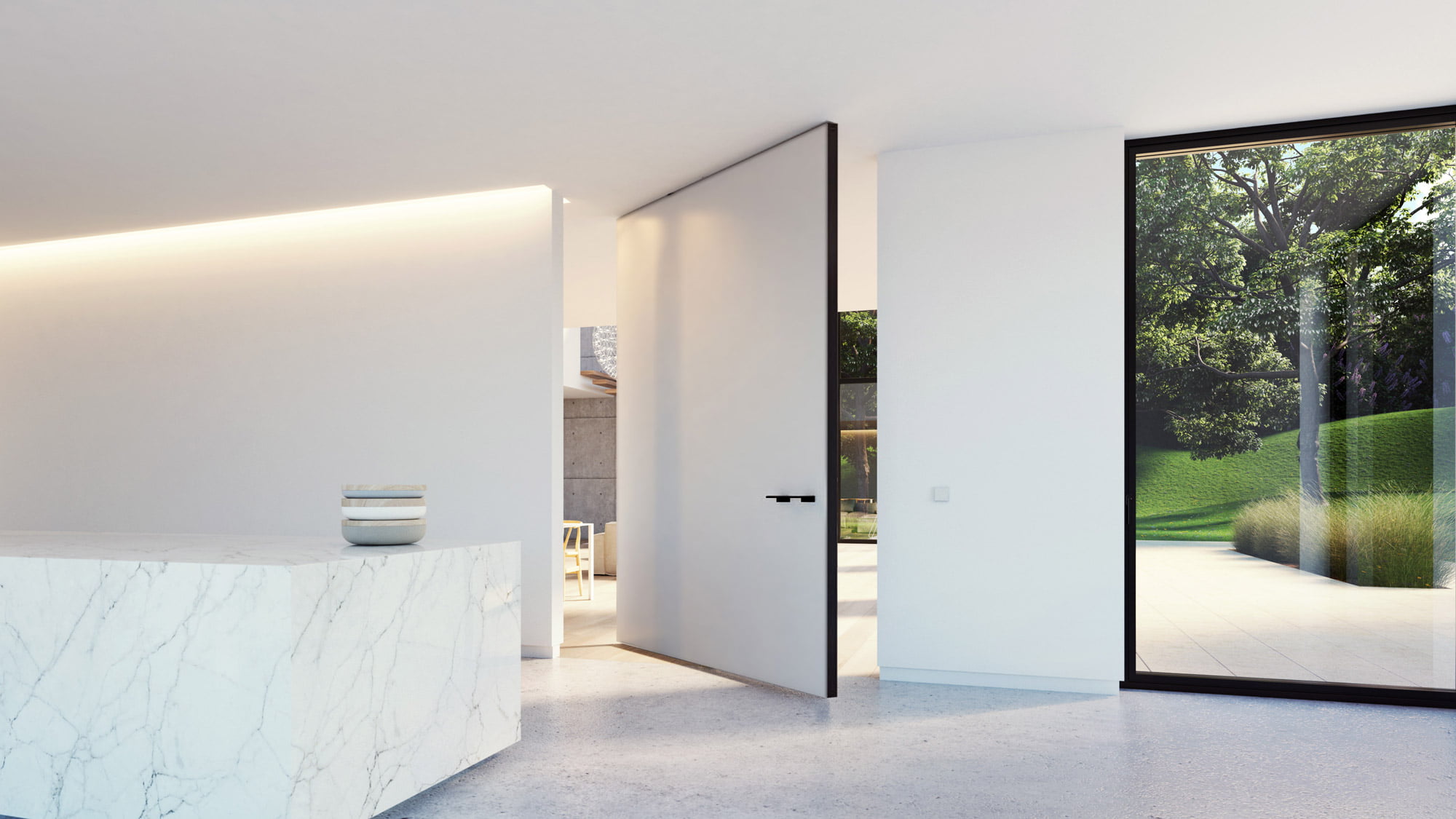

Wooden full pivot door

Elegant solution for pivot doors. The wooden wing allows you to hide the pivot hinges.
Pivot doors are made to measure and can be of almost any size between the maximum height (up to 3 mm) and the width of the door leaf (up to 000 mm).

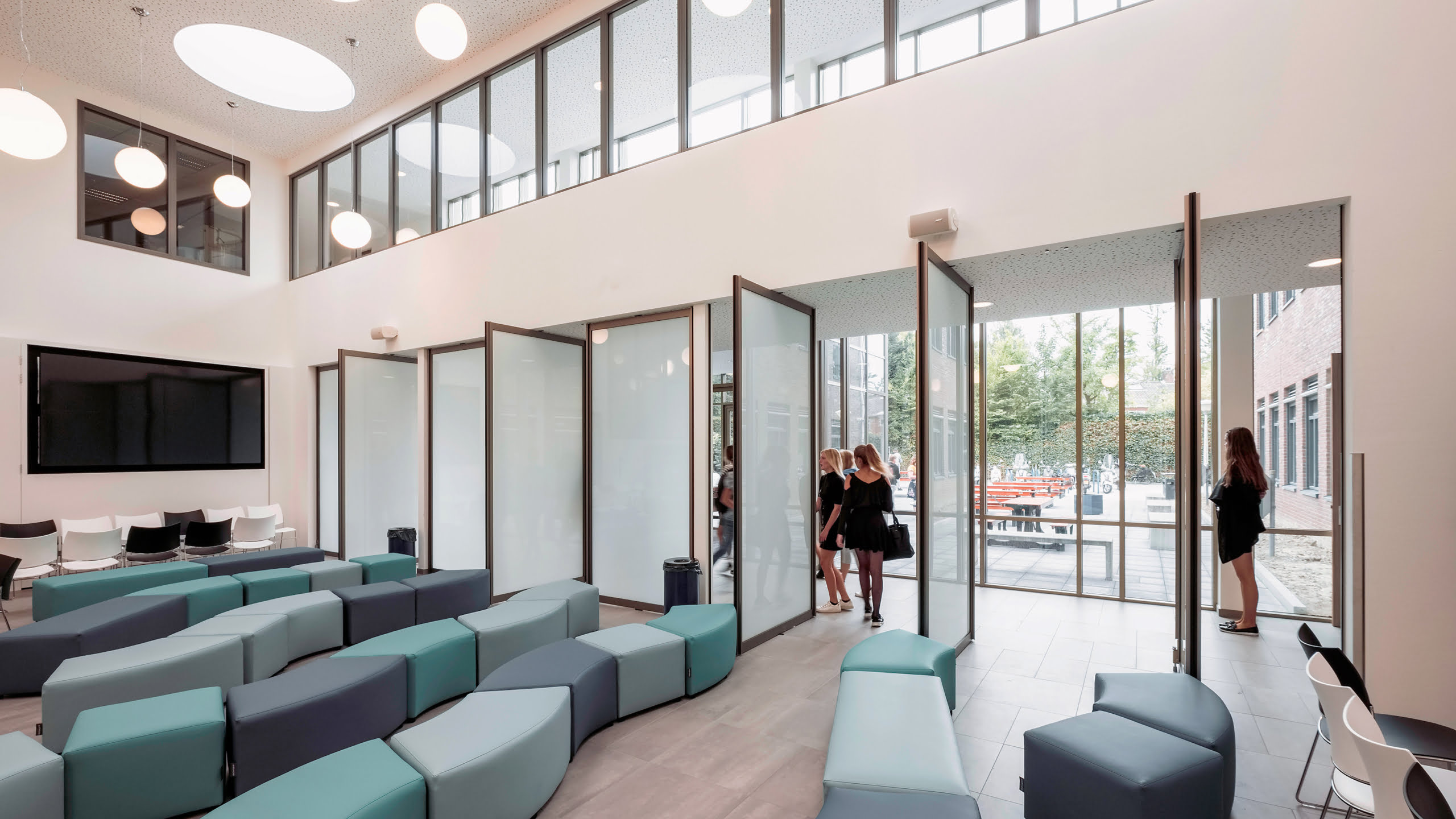

Dynamic walls from the pivot door

By combining several pivot doors, you will take advantage of the opportunity to create an effective dynamic wall.
The elegant Axon can be up to 2 meters wide and with the hinges located in the middle, the door can be rotated 360 °. This solution is therefore not only aesthetic, but also extremely practical.

Dynamic pivot wall

Design and functional

Dorsis meets the needs of architects by offering Axon pivot doors, which allow you to use the entire door space - without door frames and through edges, while maintaining an undisturbed wall line.

AXON wood NLAXON wood XL

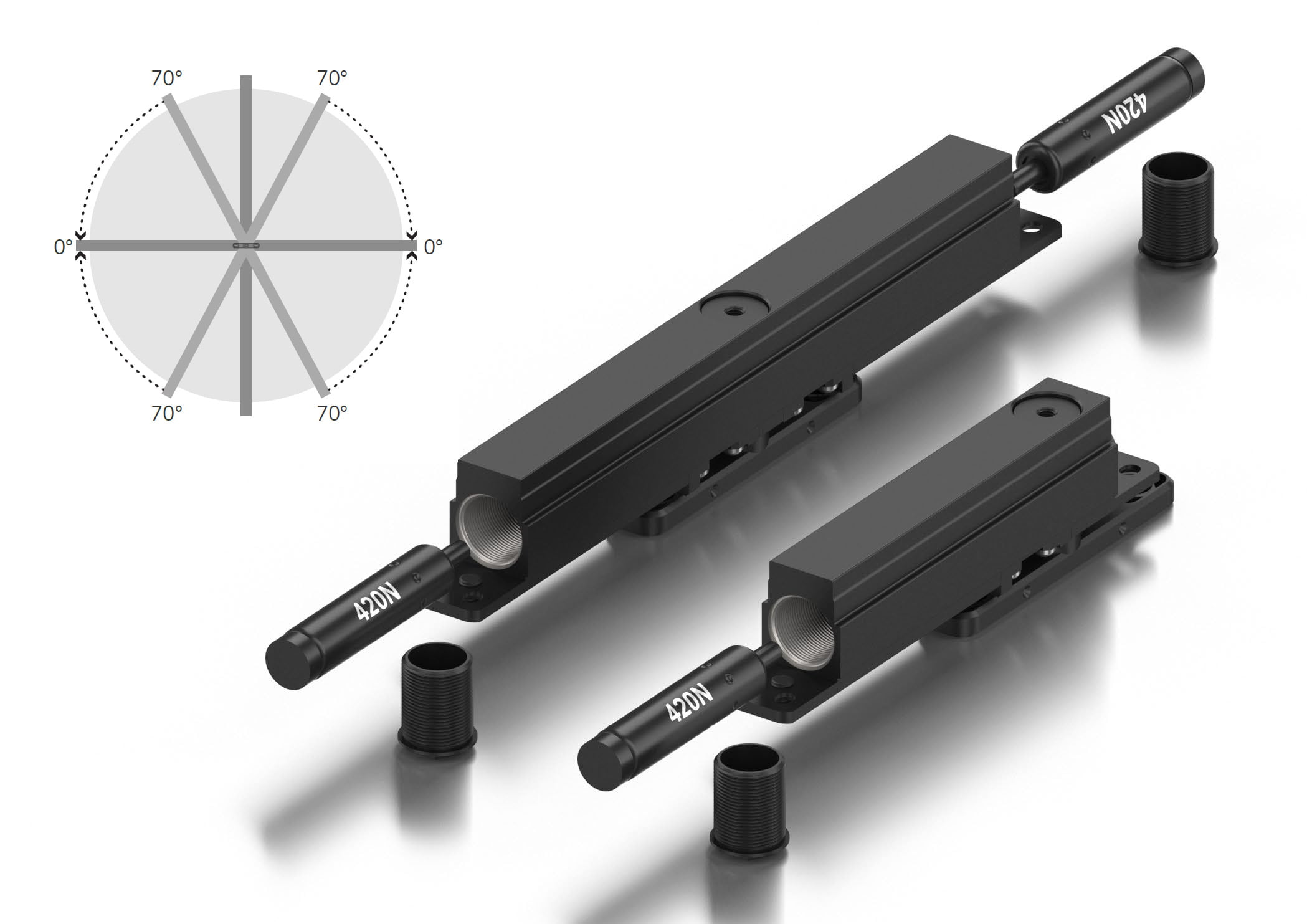

Hinge AXON WOOD

pivot door with full leaf

AXON hinge For door leaves 600-1250 mm, thickness 45 mm or 52 mm, and leaf weight up to 75 kg

  • For door leaves 600-1250 mm, thickness 45 mm or 52 mm, and leaf weight up to 75 kg
  • The pivot axis of the hinge is located at a distance of min. 85 mm from the edge of the leaf (or by turning the hinge in a milled pocket 178 mm) with a maximum offset of half the width of the leaf
  • Opening by 180°, silent operation and locking in positions 90° / 0° / -90°
  • The suspension is fitted as standard with a gas spring with a force of 480 N (alternatively, a gas spring with a force of 750 N can be supplied)
  • The hinge kit includes positioning magnets for placement on the upper edge of the sash and the ceiling
  • Drilling holes for anchoring dowels diameter 8mm / depth 45mm at 75mm spacing on center of pivot of hinge, anchoring cap in black
  • Recommended wing gaps: bottom 11 mm, top 11 mm, side 5 mm

AXON XL suspension For door leaves with a width of 1251–2250 mm (can be used from a width of 1000 mm), a leaf thickness of 52 mm and a leaf weight of 150 kg

  • For door leaves with a width of 1251–2250 mm (can be used from a width of 1000 mm), a leaf thickness of 52 mm and a leaf weight of 150 kg
  • The minimum position of the axis of rotation up to a wing width of 1750 is derived from the formula wing width - 1150 mm, but at least 150 mm from the edge of the wing. For wings with widths from 1751 mm, the minimum axis of rotation of the hinge is set at 1/3 of the width of the wing.
  • The maximum displacement of the axis of rotation is then 1/2 of the wing width in both cases
  • Opening possible by 180°, or in the case of mechanical adjustment of the locking mechanism in the lower part of the hinge by 360°, silent operation and locking in positions 90° / 0° -90°
  • The suspension is fitted as standard with two gas springs with a force of 480 N (alternatively, a gas spring with a force of 750 N can be supplied)
  • The hinge kit includes positioning magnets for placement on the upper edge of the sash and the ceiling
  • Drill holes for anchoring dowels diameter 8mm / depth 45mm at 75mm intervals to the center of rotation of the hinge anchoring cap in black
  • Recommended wing gaps: bottom 11 mm, top 11 mm, side 5 mm

Hinge AXON FRAME

pivot door with frame leaf Digero 5831

AXON hinge For door leaves 600–1250 mm frame construction DIGERO 5831, and leaf weight up to 75 kg

  • For door leaves 600–1250 mm frame construction DIGERO 5831, and leaf weight up to 75 kg
  • The pivot axis of the hinge is located at a distance of min. 85 mm from the edge of the wing (or by turning the hinge in a milled pocket 178 mm) with a maximum offset of 1/2 the width of the wing
  • Opening by 180°, silent operation and locking in positions 90° / 0° / -90°
  • The suspension is fitted as standard with a gas spring with a force of 480 N (alternatively, a gas spring with a force of 750 N can be supplied)
  • The hinge kit includes positioning magnets for placement on the upper edge of the sash and the ceiling
  • Drilling holes for anchoring dowels diameter 8mm / depth 45mm at 75mm spacing on center of pivot of hinge, anchoring cap in black
  • Recommended wing gaps: bottom 13 mm, top 11 mm, side 5 mm

AXON XL suspension For door leaves with a width of 1251–2250 mm (can be used from a width of 1000 mm), DIGERO 5831 frame construction and leaf weight up to 150 kg

  • For door leaves with a width of 1251–2250 mm (can be used from a width of 1000 mm), DIGERO 5831 frame construction and wing weight up to 150 kg
  • The minimum position of the axis of rotation up to a wing width of 1750 is derived from the formula wing width - 1150 mm, but at least 210 mm from the edge of the wing. For wings with widths from 1751 mm, the minimum axis of rotation of the hinge is set at 1/3 of the width of the wing.
  • The maximum displacement of the axis of rotation is then 1/2 of the wing width in both cases
  • Opening possible by 180°, or in the case of mechanical adjustment of the locking mechanism in the lower part of the hinge by 360°, silent operation and locking in positions 90° / 0° -90°
  • The suspension is fitted as standard with two gas springs with a force of 480 N (alternatively, a gas spring with a force of 750 N can be supplied)
  • The hinge kit includes positioning magnets for placement on the upper edge of the sash and the ceiling
  • Drill holes for anchoring dowels diameter 8mm / depth 45mm at 75mm intervals to the center of rotation of the hinge anchoring cap in black
  • Recommended wing gaps: bottom 13 mm, top 11 mm, side 5 mm

AXON glass NLAXON glass XL

Hinge AXON GLASS

pivot door with all-glass wing

AXON GLASS B hinge for all-glass door leaves with a thickness of 8-12 mm and a leaf weight of up to 100 kg

  • for all-glass door leaves with a thickness of 8-12 mm and wing weight up to 100 kg
  • the position of the axis of rotation is a minimum of 57 mm from the edge of the wing, with the maximum distance of the other edge of the wing being a maximum of 1000 mm from the axis of rotation
  • opening by 180°, silent operation and locking in positions 90° / 0° / -90°
  • drilling holes for bottom hinge metal dowel diameter 10mm / depth 40mm spaced 79mm to pivot center of hinge
  • surface finish in brushed stainless steel, polished stainless steel, black, Alu Elox
  • Recommended wing gaps: bottom 8 mm, top 5-7 mm, side 5 mm

AXON GLASS hinge for all-glass door leaves 600-1250 mm, 10 mm thick, and leaf weight up to 75 kg

  • For all-glass door leaves 600-1250 mm, 10 mm thick, and wing weight up to 75 kg
  • The pivot axis of the hinge is located at a distance of min. 85 mm from the edge of the wing (or by turning the hinge in a milled pocket 178 mm) with a maximum offset of 1/2 the width of the wing
  • Opening by 180°, silent operation and locking in positions 90° / 0° / -90°
  • The suspension is fitted as standard with a gas spring with a force of 480 N (alternatively, a gas spring with a force of 750 N can be supplied)
  • The hinge kit includes positioning magnets for placement on the upper edge of the sash and the ceiling
  • Drilling holes for anchoring dowels diameter 8mm / depth 45mm at 75mm spacing on center of pivot of hinge, anchoring cap in black
  • Surface treatment in the variant black, silver
  • Recommended wing gaps: bottom 11 mm, top 11 mm, side 5 mm

AXON GLASS XL hinge for all-glass door leaves with a width of 1251–2250 mm (with the possibility of use from a width of 1000 mm), a leaf thickness of 10 mm and a leaf weight of 150 kg

  • For all-glass door leaves with a width of 1251–2250 mm (with the possibility of use from a width of 1000 mm), a wing thickness of 10 mm and wing weight 150 kg
  • The minimum position of the axis of rotation up to a wing width of 1750 is derived from the formula wing width - 1150 mm, but at least 150 mm from the edge of the wing. For wings with widths from 1751 mm, the minimum axis of rotation of the hinge is set at 1/3 of the width of the wing.
  • the maximum displacement of the rotation axis is then 1/2 of the wing width in both cases
  • Opening possible by 180°, or in the case of mechanical adjustment of the locking mechanism in the lower part of the hinge by 360°, silent operation and locking in positions 90° / 0° -90°
  • The suspension is fitted as standard with two gas springs with a force of 480 N (alternatively, a gas spring with a force of 750 N can be supplied)
  • The hinge kit includes positioning magnets for placement on the upper edge of the sash and the ceiling
  • Drill holes for anchoring dowels diameter 8mm / depth 45mm at 75mm intervals to the center of rotation of the hinge anchoring cap in black
  • Surface treatment in the variant black, silver
  • Recommended wing gaps: bottom 11 mm, top 11 mm, side 5 mm

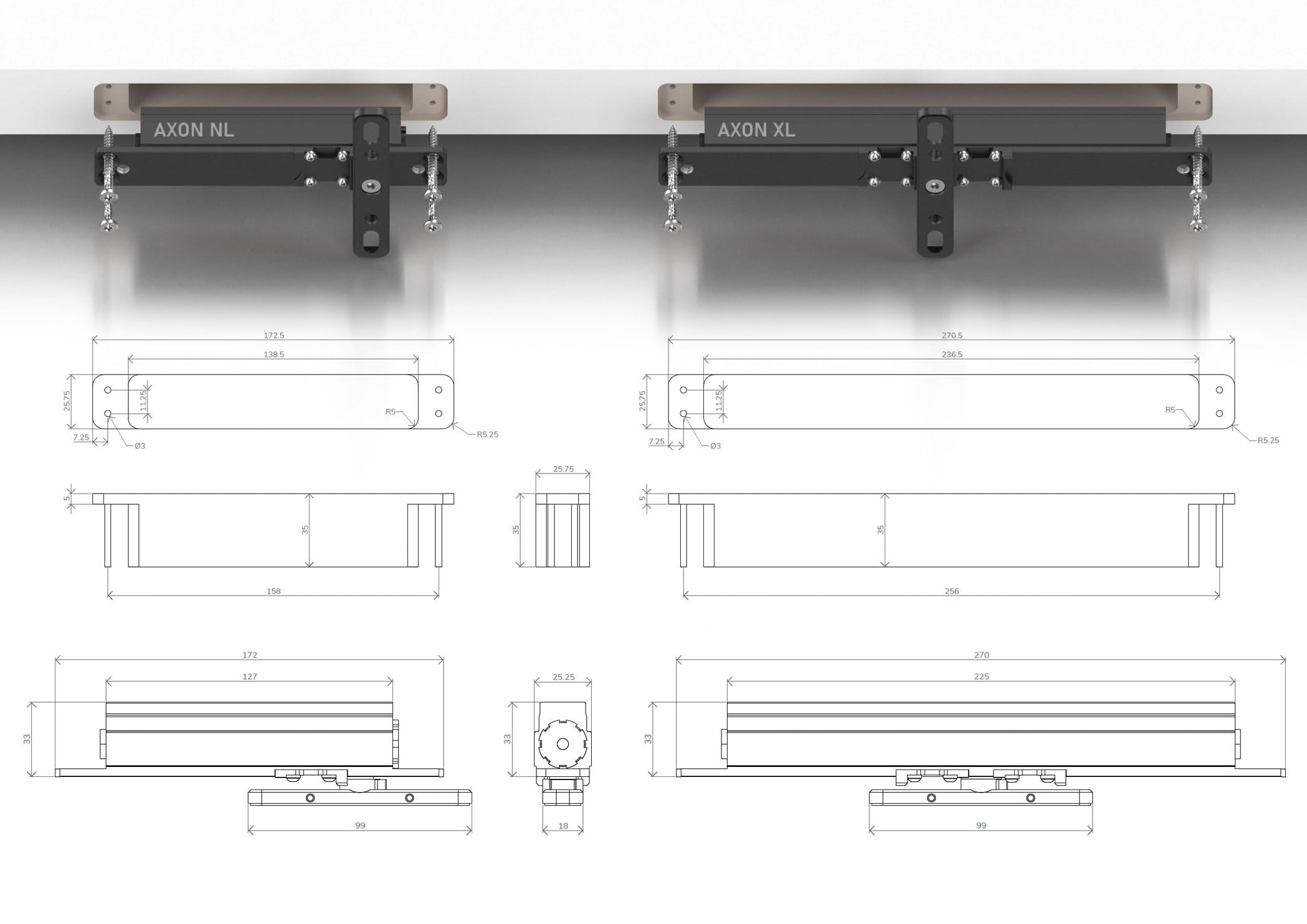

DIMENSIONS AXON PIVOT NL AND XL

Dimensions of pivot hinges and milling for Axon NL & XL.

Emphasis on minimalism

The pivot hinge is an invisible, innovative and compact swivel system that can be inserted into any door leaf. The hinge is equipped with a top comfort closure, which works in all rotating directions in the range up to 360 °.

Pivot hinges are available in two versions. The standard NL version is designed for wings up to a width of 1250 mm and a weight of 75 Kg. The XL hinge version is designed for wings up to a width of 2250 mm and a weight of 150 Kg.

The axis of rotation of a standard NL hinge can be either 80 mm or 178 mm.
The axis of rotation of the XL version is located either in one third or in the middle of the door leaf.

Axon pivot doors can be installed in a finally completed construction opening with minimal demands on drilling into already finished floors and ceiling lintels.

Where can pivot doors be used and what are their benefits?

Pivot doors can be used in any space without restrictions. They are made to measure and can have almost any
dimension, in the range of the maximum height and width of the door leaf (which is almost three meters). Pivot doors have several advantages. The pivot hinge is fixed to the floor and ceiling, so the edges of the passage remain clean. If we place several pivot doors with a central axis of rotation behind each other, a variable dynamic wall is created, which can be closed or opened in any way as needed. If the space requires a lot of light, all-glass pivot doors are the ideal solution.

Perfect design doesn't just mean great
appearance but also perfect functionality. Pivot
the door is proof of that.
